MAG520W3 Features
Dimensions
Width/depth/height, mm 120x78x21
Weight, g 110
Hardware
Chipset Amlogic S905X2
Processor Quad-core ARM Cortex-A53, 1,900 MHz
Performance 18,400 DMIPS
RAM 1 GB DDR3
Flash memory 4 GB eMMC
Software
Operating system Linux 4.9
DRM option Upon request
Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available
Interfaces

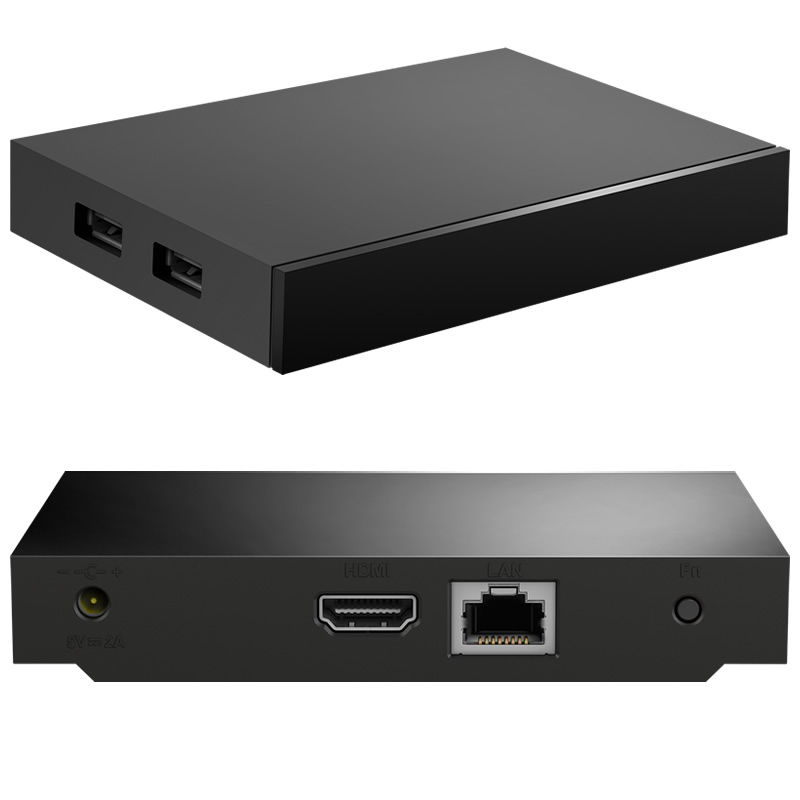

HDMI 2.1, Ethernet 100 Mbps, 1 × USB 3.0, 1 × USB 2.0, built-in 2T2R ac Wi-Fi module
Sources of media content
PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices
Audio & video
Audio сodecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Audio formats AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Video сodecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVTT, closed captions
Playlist formats M3U, M3U8, PLS, CUE
Comes with

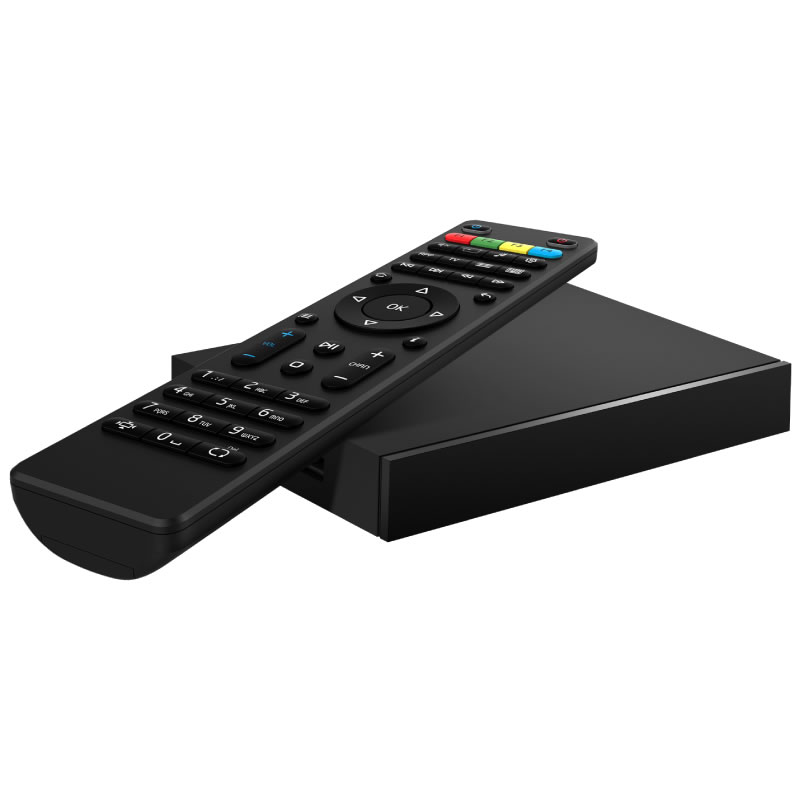

A MAG520w3 set-top box, a user manual, an HDMI cable, a 5V 2A power adapter, a remote control, two AAA batteries, and packaging
