MAG424AW3 Features
Dimensions
Width/depth/height, (mm) 115x115x28
Weight, g 180
Hardware
Chipset Hi3798MV200
Processor ARM Cortex-A53 Quad Core CPU 1200 MHz
Performance 15 000 DMIPS
RAM 1 GB
Flash memory 8 GB eMMC
Software
Operating system Android 7.0
Middleware supported Ministra TV platform version 5.4.0 or higher
Interfaces
HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1, Bluetooth 3.0, 4.1, MicroSD, Built-in Wi-Fi ac 2x2
Sources of media content
PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices
Audio & video
Audio сodecs MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus
Audio formats MP3, MPA, M4A, OGG, WAV, AAC
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video сodecs H.265 (HEVC), H.264 (AVC, MVC), MPEG-1/2, MPEG-4
Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed caption
Playlist formats M3U, M3U8, PLS, CUE
Comes with

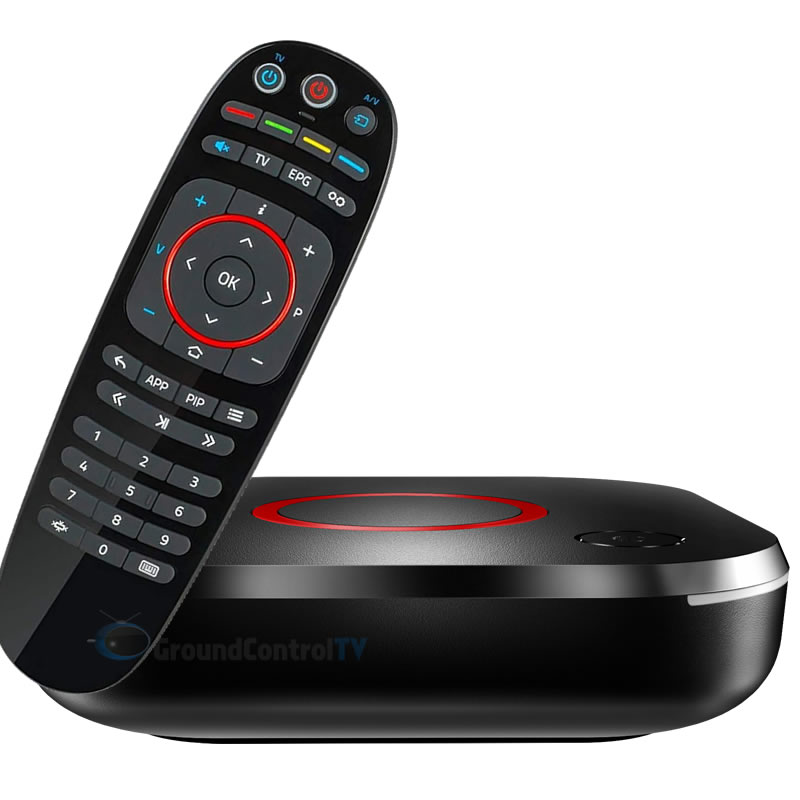

MAG424Aw3 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging,1 Year warranty
