MAG324 W2 is a low cost solution for IPTV/OTT projects. MAG324 supports HEVC h.265 compression to offer high quality video feeds. Also new is the case and remote control for easier navigation and ease of use. Has 1GB of RAM over 512MB in MAG322 model and also comes with W2 wifi, supporting both 2.4 and 5G wifi connections for maximum speed.
HEVC support
The set-top box plays the HEVC-compressed files. This means the network load will be lower, even when delivering high-quality content.
3D video support
The set-top box plays advanced 2D and 3D graphics with OpenGL ES 2.0 support.
High-performance
Modern high-performance processor on the Broadcom chipset and 1 GB RAM is good enough to playback in high-quality video.
Ergonomic design
The set-top box and remote control are presented in the new Micro Fusion design. They will look good in any interior.
Specifications
Dimensions
Width/depth/height, (mm) 115x115x28
Weight, g 170
Hardware
Chipset BCM75839
Processor MIPS 4KE Dual Core CPU 750Mhz
Perfomance 2000 DMIPS
RAM 1 GB
Flash memory 512 Mb
Software
Operating system Linux 3.3
Built-in Media Portal with WebKit-based IPTV-functionality, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
Middleware supported Ministra multiscreen TV platform
Interfaces

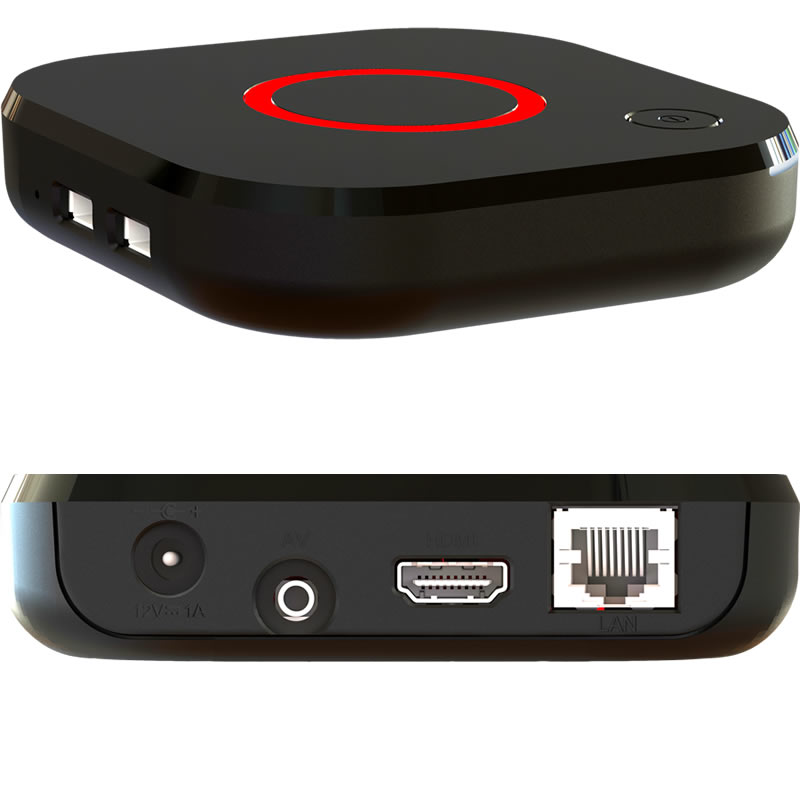

HDMI 1.4-output, Composite + stereo A/V output, Ethernet 100 Mb/s, USB2.0х2, Wi-Fi b/g/n/ac 1x1
Sources of media content
PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, HTTP), USB-devices
Audio & video
Audio сodecs MPEG-1 layer I/II/III, WMA, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital (optional)
Audio formats MP3, MPA, M4A, WMA, Ogg, WAV
Video modes 1080i, 1080p, 720p, 576p, PAL, NTSC
Video сodecs MPEG-1/2, MPEG-4, H.264/AVC HP@L4.2, WMV9, H.265/HEVC Main and Main10 profile up to 1080p at 60 fps, XviD, 3D video support
Video containers MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
Image formats JPEG, PNG, BMP, GIF, RAW
Subtitles DVB, PGS, SRT, ASS, SUB
Playlist formats M3U
Package Contents
MAG324w2 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
