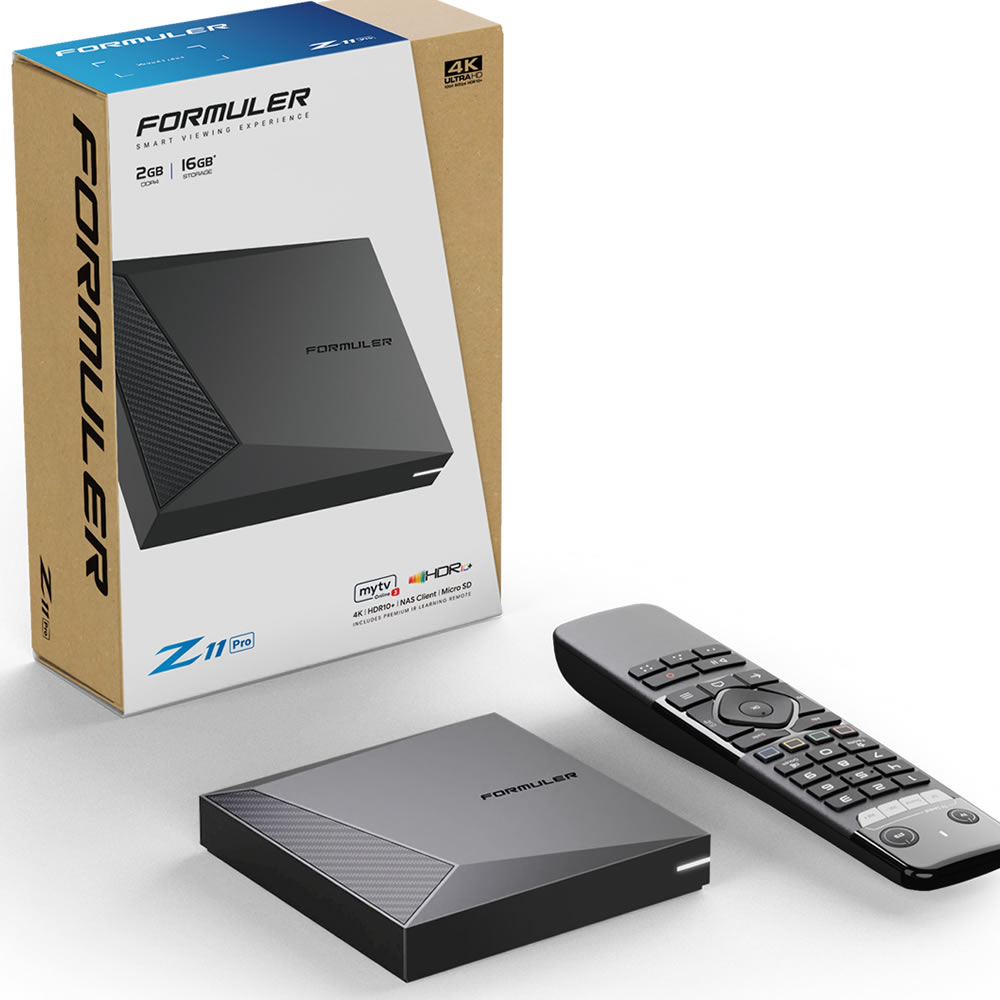

Formuler Z11 Pro Specifications
Experience stunning 4K resolution (3840 x 2160) with the RealTek RTD1319C CPU and Mali-G57 MC1 GPU. Enjoy smooth and fast performance with 2GB DDR @2400MHz RAM and 16GB eMMC storage. The Formuler Z11 Pro operates on the Android 11 operating system, and offers various networking options such as Dual-Band 2x2 AC Wireless, BT 5.0, and 1000M (Gigabit) Ethernet. With the video decoder supporting 4K@60fps, AV1, H.265(HEVC), AVS, H.264(AVC,MVC), Real, MPEG1/2/4, VC-1, and the audio decoder supporting MPEG-1 Layer 1,2,3(2-CH), MPEG-2 Layer 1,2, HE AAC V1/V2, you can enjoy a wide variety of media formats. The device also comes equipped with Embedded Widevine Level 1 DRM, unlocking premium content. The compact black device measures at a length/width of 105mm and thickness of 21mm. It features a power input, USB 3.0, USB 2.0, HDMI, Gigabit LAN, Micro SD Card, and IR Extension ports. The power input has a rating of 12VDC / 1A with a maximum power consumption of 12W, and standby power of Max 0.5W (Ultra low power).
Specifications
Output Resolution: 4K (3840 x 2160)
CPU: RealTek RTD1319C
GPU: Mali-G57 MC1
RAM: 2GB DDR @2400MHz
Storage: 16GB eMMC
Operating System: Android 11
Networking
Wireless: Dual-Band 2x2 AC Wireless
BT: 5.0
Ethernet: 1000M (Gigabit)
Decoder
Video decoder: 4K@60fps, AV1, H.265(HEVC), AVS, H.264(AVC,MVC), Real, MPEG1/2/4, VC-1
Audio decoder: MPEG-1 Layer 1,2,3(2-CH), MPEG-2 Layer 1,2, HE AAC V1/V2
DRM: Widevine L1, L3
Dimensions
Length / Width: 105mm
Thickness: 21mm
Color: Black
Ports
Power Input: 1
USB 3.0: 1
USB 2.0: 1
HDMI: 1
Gigabit LAN: 1
Micro SD Card: 1
IR Extension: 1
Power Input
Power rating: 12VDC / 1A
Power Consumption: Max. 12W
Standby Power: Max 0.5W (Ultra low power)
